AuraRefine X-Series BPD-100 is a continuous waste oil re-refining system designed to produce high-quality base oil in line with European standards. By combining advanced thin film distillation and liquid-liquid solvent extraction technologies, the system ensures maximum efficiency, stable operation, and superior product purity. Its modular design allows fast installation, easy transportation, and scalable capacity, making it an ideal solution for modern recycling facilities.

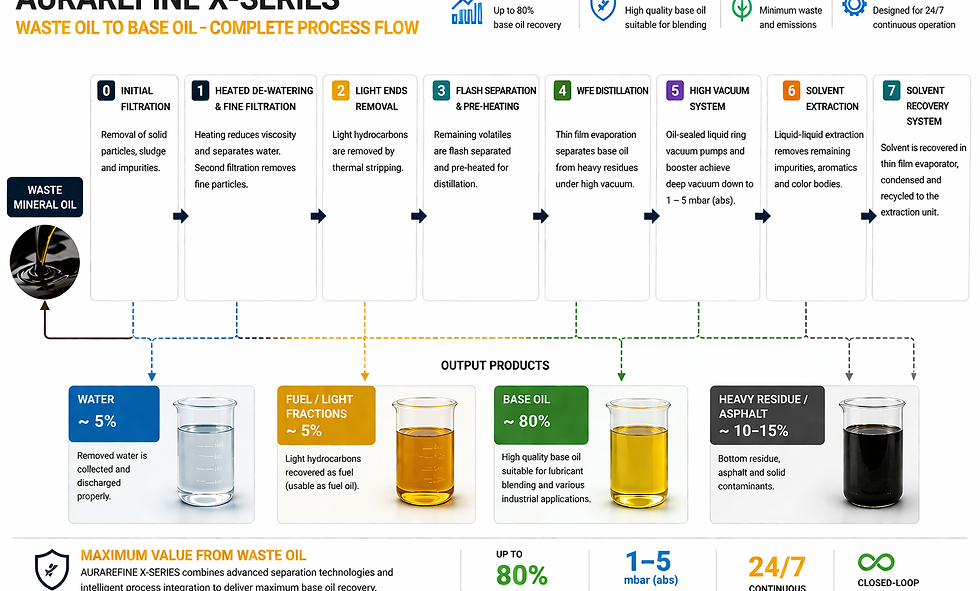

Process Overview

Waste oil enters the system and is first preheated to reduce viscosity and prepare it for separation. It then passes through the following stages:

1- De-Watering Module (HydroSep™)
Free and emulsified water is removed to ensure stable downstream processing.

2- Light Ends Recovery (AeroStrip™)

Light hydrocarbons and fuel fractions are separated from the oil.

3- Thin Film Distillation (CoreRefine™ WFE)
High-efficiency evaporation separates base oil from heavy contaminants.

4- Solvent Extraction Module
Final purification step where liquid-liquid extraction removes remaining impurities to achieve high-quality base oil.

Recovered solvent is continuously recycled within the system, ensuring efficiency and low operating cost.

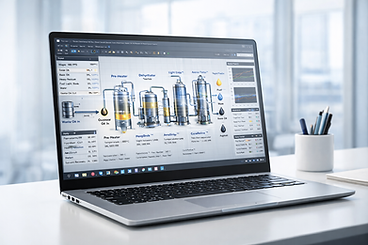

Process Simulation & Engineering Validation

Advanced Process SimulationAll critical parameters including temperature, flow rate, and separation efficiency have been optimized through digital modeling.

All rights, including design, engineering, and process concepts, are the exclusive property of Support Oil Tech.Unauthorized use, reproduction, or distribution is strictly prohibited.

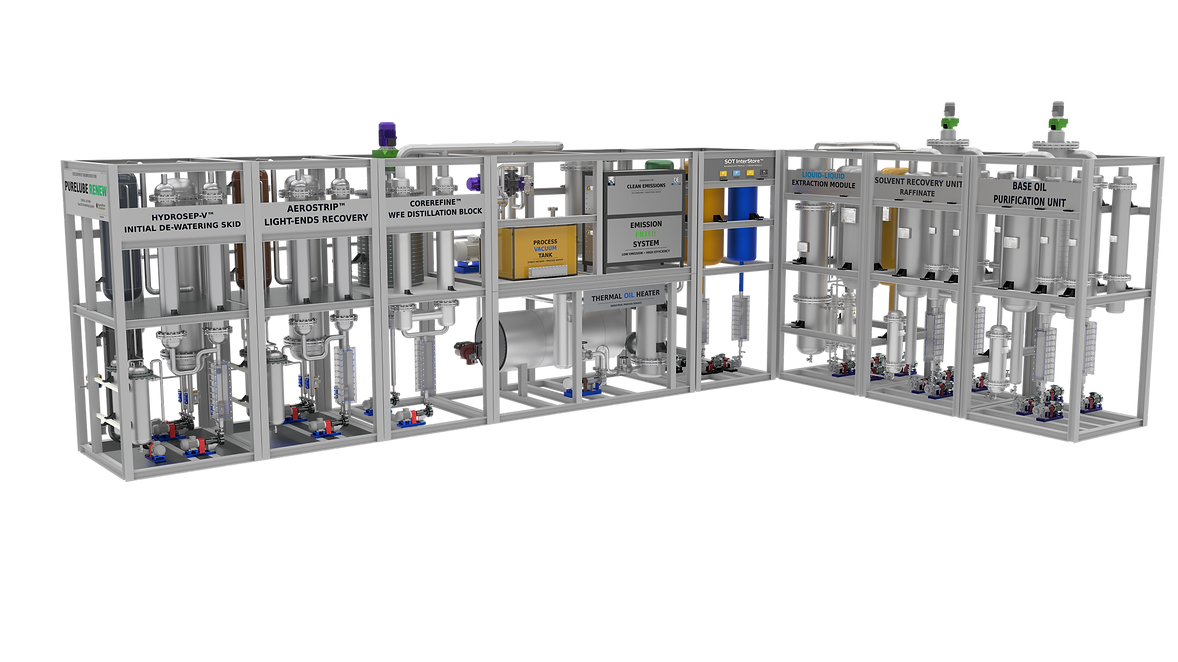

Skid-Mounted Modular Configuration

Linear Layout

L-Shaped Layout

Reverse L-Shaped Layout

Adaptable layouts engineered to fit your facility, simplify installation, and maximize operational efficiency.

This system is designed to convert waste lubricating oils into high-quality Group I base oil, meeting industrial standards.
The integrated modular process ensures stable operation, consistent product quality, and efficient performance across all stages.
For detailed technical information and project-specific solutions, please contact us.

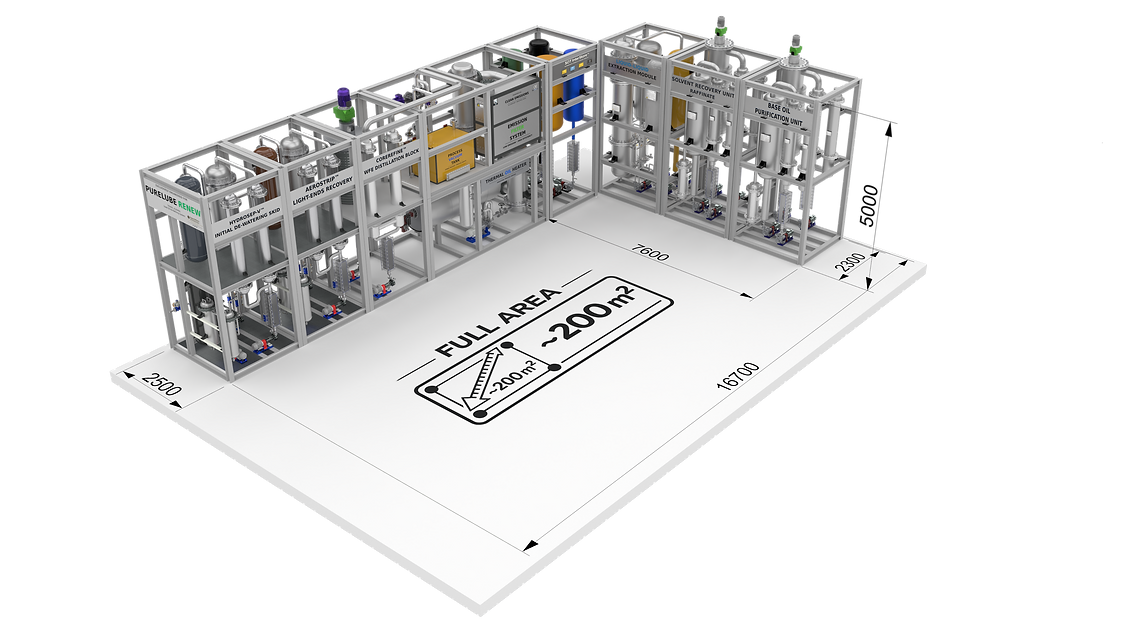

System Layout & Space Requirements

Own the Technology, Build Locally

✔ Complete Engineering Package for Local Manufacturing

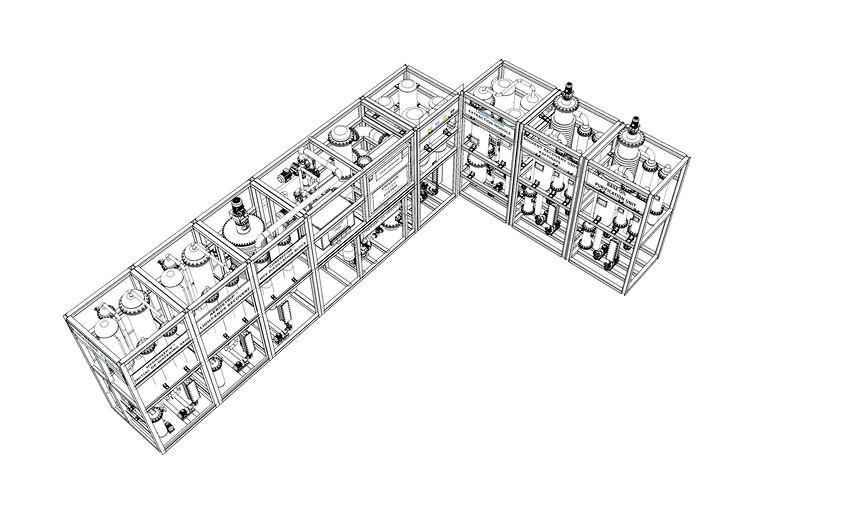

✔ Full 3D Engineering Model
✔ Technical Drawings & P&ID
✔ Electrical System Design
✔ Component Sourcing Support
